1. Introduction
The filter support frame is an indispensable core component in industrial dust removal and acid-base waste gas treatment equipment. It is mainly used to fix filter bags, filter cotton, activated carbon screens and spray fillers. Working in harsh environments for a long time, the frame must withstand continuous airflow impact and wind pressure load, while resisting erosion from acid-base mist, humid dust and corrosive waste gas. Traditional frames made of metal, wood and ordinary plastic have prominent drawbacks including easy corrosion, high wind resistance, structural deformation, short service life and high maintenance cost, which cannot adapt to complex working conditions in chemical, electroplating, spraying, pharmaceutical and metal processing industries.

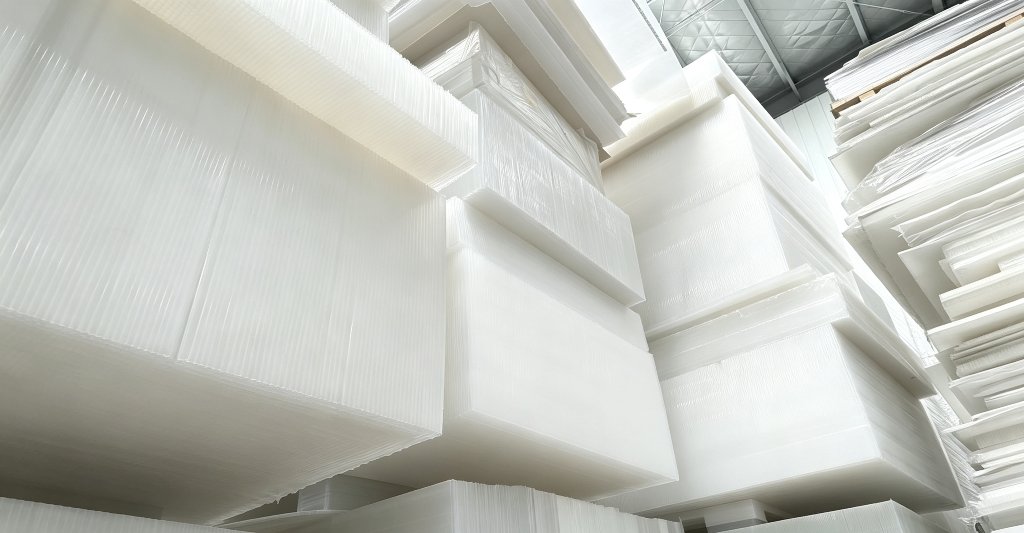

With through-hole honeycomb structure, native corrosion resistance of polypropylene material and high specific strength lightweight performance, PP through-hole honeycomb core has become the preferred substrate for special support frames of industrial dust and exhaust treatment equipment. Different from closed honeycomb, solid plates and metal profiles, it integrates structural support, airflow diversion, corrosion resistance and maintenance-free performance, completely solves the working condition adaptation problems of traditional frames, and helps environmental protection equipment achieve efficient operation, long service life and cost reduction.
2. Pain Points of Traditional Support Frames
Industrial dust removal and waste gas purification equipment always operate in high-humidity, acid-base and dust-rich harsh environments, and traditional mainstream support frames have obvious performance shortcomings that restrict equipment efficiency:
Metal frames (carbon steel, stainless steel) are the most widely used traditional solution. However, they are prone to oxidation, corrosion and rust in acid-base waste gas environments. Rust residues will block filter materials and pollute air ducts, shorten the service life of filter elements, and cause frame deformation and bearing failure. Frequent inspection and replacement greatly increase operation and maintenance costs. In addition, metal frames are heavy, increasing the overall load and installation difficulty of equipment.
Wooden and ordinary solid plastic frames have acceptable corrosion resistance but insufficient structural rigidity. They are easy to bend, crack and deform under long-term high-pressure airflow scouring, resulting in loose filter materials, air leakage and uneven filtration. Meanwhile, the non-breathable solid structure causes extremely high wind resistance, increases fan load and raises equipment energy consumption.
Closed honeycomb core and foam core are troubled by water and dust accumulation. Humid dust and waste gas condensate accumulate on the surface, causing mildew and delamination, which completely lose supporting performance and cannot meet the continuous operation requirements of industrial environmental protection equipment.
3. Core Advantages of PP Through-Hole Honeycomb Core as Support Frame
Tailored for harsh industrial working conditions, PP through-hole honeycomb core accurately matches the frame usage requirements of dust and exhaust treatment equipment in both material properties and structural design, with irreplaceable core advantages:
3.1 Native Corrosion Resistance, Adaptable to Full Acid-Base Working Conditions
Made of food-grade polypropylene raw material, the core has excellent acid, alkali and chemical corrosion resistance. It can long-term resist erosion from hydrochloric acid, sulfuric acid, alkali mist, organic waste gas and humid dust without rusting, oxidation, embrittlement or delamination. It maintains stable structural performance in various harsh scenarios such as electroplating acid-base waste gas, spraying paint mist, chemical organic waste gas and mining corrosive dust, eliminating the problems of metal frame corrosion failure and system pollution, and greatly extending the service life of equipment frames.
3.2 Full Through-Hole Structure, Low Wind Resistance Improves Purification Efficiency
Different from solid plates and closed honeycomb structures, PP through-hole honeycomb core adopts fully penetrated and neatly arranged honeycomb holes with smooth and uniform airflow channels. During equipment operation, airflow penetrates the core unobstructed, effectively reducing air duct pressure loss. The actual pressure drop is only 15-25Pa under the same wind speed, far lower than traditional filter materials and solid frames, reducing fan operating power by 30%-40% with remarkable energy-saving effects. In addition, the regular through holes balance the internal airflow of equipment, avoid turbulence and vortex, ensure uniform stress on filter materials and fillers, and improve the overall dust removal and waste gas purification efficiency.
3.3 Lightweight & High Strength, Stable Structure Without Deformation
The bionic honeycomb structure endows the material with ultra-high specific stiffness, compression and shear resistance. With ultra-light weight, it can stably bear long-term airflow impact and filter load without bending, deformation or collapse during long-term operation. Its density is only 1/32 of aluminum. While realizing overall equipment lightweighting, it fully meets the structural bearing requirements of industrial equipment. It reduces the overall weight of equipment, facilitates hoisting, installation and handling, maintains flat frame surface for a long time, firmly fixes various filter materials and fillers, and avoids air leakage and filter displacement.
3.4 Easy to Clean & Maintenance-Free, Suitable for Continuous Industrial Operation
PP through-hole honeycomb core has a smooth and non-absorbent surface that does not adhere to dust and waste gas condensate. It can be cleaned directly by water washing or high-pressure air blowing with no residue. It does not require regular rust removal and anti-corrosion painting like metal frames, nor frequent replacement of deformed and aging plastic frames. It greatly reduces labor and material costs for daily equipment operation and maintenance, perfectly adapting to the 24-hour continuous operation mode of industrial equipment.
3.5 Green & Recyclable, Compliant with Environmental Protection Standards
The material is formaldehyde-free, non-toxic and 100% recyclable without secondary pollution, in line with the green development concept of the environmental protection equipment industry. It can be customized in aperture, thickness and specifications according to equipment size and wind pressure requirements, and can be cut and processed freely. It is widely compatible with bag dust collectors, spray towers, activated carbon adsorption boxes, UV photolysis equipment and integrated waste gas purification equipment.
4. Main Application Scenarios
4.1 Filter Support Frame for Dust Removal Equipment
Widely used in bag dust collectors, cartridge dust collectors and central dust removal equipment as special supporting frames for filter bags, filter cartridges and primary filter cotton. It stably fixes filter materials, resists dust airflow scouring, reduces energy consumption of dust removal systems with low wind resistance, and has excellent dust wear resistance, moisture and mildew resistance, solving the problem of dust removal failure caused by deformation and corrosion of traditional frames.
4.2 Internal Frame for Acid-Base Waste Gas Treatment Equipment
Applied to spray scrubbers, acid-base waste gas purification towers and activated carbon adsorption boxes as filler support layers, filter partition frames and air duct rectification supports. It withstands long-term acid-base mist corrosion, supports spray fillers and adsorption filter materials without collapse. The through-hole structure ensures full gas-liquid contact and uniform waste gas circulation, significantly improving waste gas purification effect.
4.3 Air Duct Rectification Support Plate for Industrial Waste Gas Equipment
Used for rectification and support at the inlet, outlet and middle section of environmental protection equipment air ducts, replacing traditional solid rectification plates. It realizes structural support and air duct reinforcement, evenly diverts airflow, avoids excessive local wind pressure and airflow turbulence, reduces equipment operating noise, and improves the overall operation stability of waste gas treatment systems.
5. Application Value Conclusion
The performance of the support frame directly determines the operating efficiency, service life and maintenance cost of industrial dust and waste gas treatment equipment. Breaking through the performance limitations of traditional materials, PP through-hole honeycomb core integrates corrosion resistance, low wind resistance, energy saving, lightweight high strength and low maintenance cost, perfectly adapting to harsh industrial corrosive working conditions.
It solves the industry pain points of metal frame corrosion, plastic frame deformation and solid plate high wind resistance, and realizes multiple upgrades of equipment structural lightweighting, energy-saving operation and low-cost maintenance. As a new core material for the upgrading of modern industrial environmental protection equipment, it is widely applicable to dust and waste gas purification scenarios in chemical, electroplating, spraying, pharmaceutical, metallurgical and electronic industries.
