Composite panel manufacturers serving the RV, marine, roof‑top tent, and specialty vehicle industries know that their end customers care about three things above all: weight, strength, and durability. The core material, as the heart of any sandwich panel, largely determines how well your product performs in these areas.

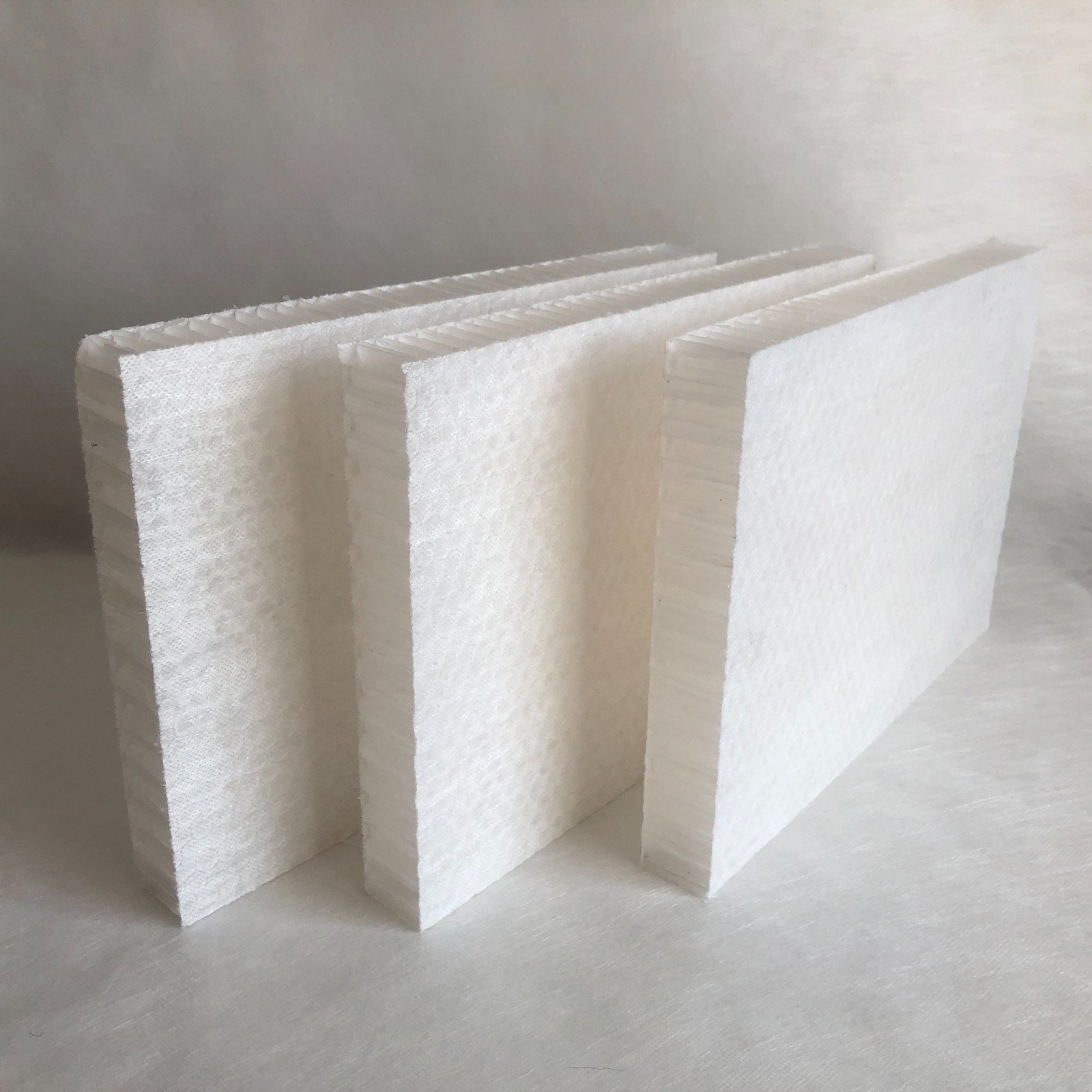

Round‑cell PP honeycomb core is a well‑established, proven core material that has been used in lightweight composite panels for many years. It is manufactured from polypropylene resin, extruded into a round‑cell honeycomb structure, and thermally bonded with non‑woven fabric on both sides. This core is ready for panel manufacturers to laminate with FRP, aluminium sheets, or other decorative facings.
Its widespread adoption is built on several practical advantages:
1. Significant weight reduction
At equal thickness and flexural stiffness, round‑cell PP honeycomb core has a much lower density than plywood. Panels made with this core can save several kilograms per square metre, directly reducing the overall curb weight of the final RV or boat – which translates into lower energy consumption and higher payload capacity. For manufacturers of mobile equipment, this is one of the most compelling selling points.
2. Inherent waterproofness and rot resistance – lower after‑sales risks
Polypropylene is naturally hydrophobic, and the closed‑cell round structure prevents moisture from penetrating the core. Panels built with this core will not swell, mould, or rot in humid, salt‑spray, or rainy environments – unlike wood‑based cores that often cause surface blistering or delamination when exposed to moisture. This means panel manufacturers can significantly reduce warranty claims and after‑sales service costs.
3. Non‑woven interface for reliable adhesive bonding
The pre‑laminated non‑woven fabric on both sides provides an excellent mechanical key for epoxy, polyurethane, and unsaturated polyester adhesives. Once the adhesive penetrates the fibre pores and cures, it forms a strong interlocking bond – with much higher peel strength than smooth or untreated plastic cores. Even under continuous vibration and temperature cycling, the composite interface remains stable, with minimal risk of delamination or hollow spots – a critical factor for dynamic applications like RVs and boats.
4. Compatible with existing processing methods
The core can be cut, grooved, and routed using standard CNC routers, waterjet cutters, or conventional woodworking tools. The PP material is tough and machining produces clean edges with minimal chipping or dust. Grooves for reinforcing inserts remain intact without wall collapse. Panel manufacturers can switch to this core without changing existing production lines, keeping transition costs low.
5. Environmental compliance
The product is made of pure polypropylene, containing no added formaldehyde or halogenated flame retardants. It has low VOC emissions during production and use, and is fully recyclable at end of life. It meets current environmental regulations for transportation materials in many global markets, and gives your customers a green selling point for their own products.
In addition, the round‑cell geometry offers some inherent acoustic damping – the air trapped within the cells helps absorb mid‑ to high‑frequency vibration energy, reducing noise transmission through wall or floor panels. This is an extra benefit that solid cores cannot provide.
In short, round‑cell PP honeycomb core is not a product that needs to be “reinvented” – it has a long track record in the lightweight composite panel industry. If you are looking for a reliable, process‑friendly, and cost‑effective lightweight core material to upgrade your composite panels, this is a solution worth serious consideration.
