In modern ventilation and airflow management systems, one seemingly simple yet critical component is playing an increasingly important role – the PC honeycomb core. With its unique flow-straightening capability and extremely low air resistance, this biomimetic structural material has become indispensable in display cabinets, wind tunnels, electronic enclosures, air conditioning systems, and many other applications.
The Power of Honeycomb Structure: From Turbulent to Laminar Flow
One of the most troublesome challenges in airflow management is the unpredictability of turbulence. When air moves in a disordered, chaotic manner, it leads to uneven temperature distribution, localized frosting, increased noise, and higher energy consumption. The PC honeycomb core is designed precisely to solve these problems.

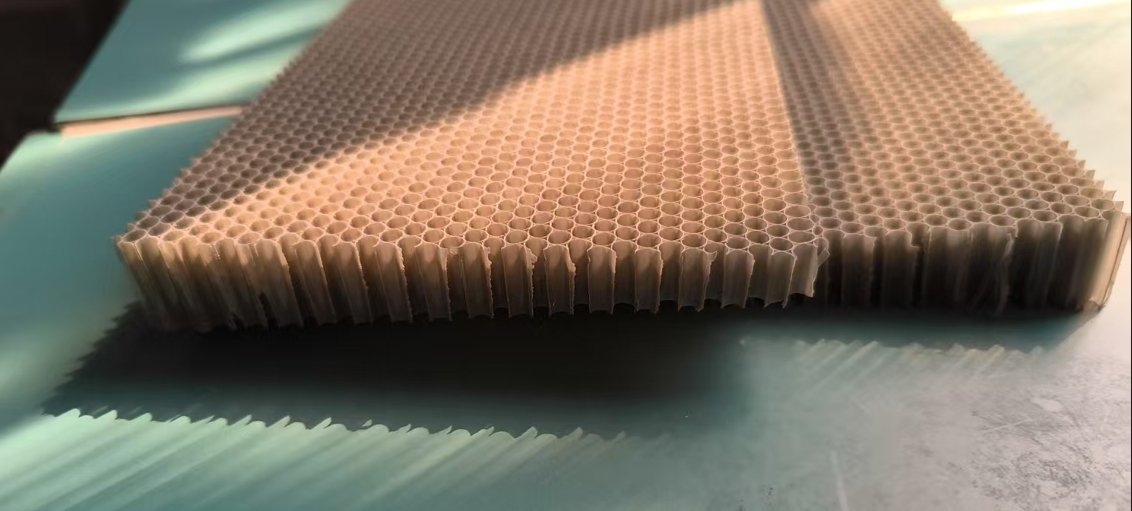

Using its regular hexagonal cell structure, the PC honeycomb core efficiently cuts and straightens turbulent airflow. As turbulent air enters the honeycomb, each cell acts as an independent straightening channel – airflow is forced to move along the cell axis, large vortices are broken down into smooth parallel streams, and turbulence intensity is significantly reduced. This makes the PC honeycomb core an ideal material for flow straightening, capable of converting chaotic airflow or liquid flow into a directional, laminar flow.
Extremely Low Resistance, Higher Efficiency
While meeting straightening requirements, the PC honeycomb core also offers outstanding air permeability. Air transmittance can reach up to 97%, significantly reducing airflow resistance and minimizing noise. In practical applications, an air flow straightener made of round-cell PC honeycomb reduces pressure loss by 18% to 25% at an air velocity of 2 m/s. This means equipment can achieve the same ventilation effect with lower fan power consumption, or achieve a longer throw distance under the same energy input – significantly improving overall system efficiency.
Based on these properties, PC honeycomb cores are widely used as straightening grids installed on the inside of outlet panels in fan coil return air vents, fresh air blower outlets, and similar devices to reduce turbulence, lower noise, and enhance air delivery performance.
Temperature Stability and Reduced Frosting
For low-temperature applications such as refrigerated display cabinets, frosting and uneven temperature distribution are two major challenges. PC material offers excellent thermal stability – it maintains structural integrity and minimal deformation even at temperatures as low as -40°C. This makes the PC honeycomb core highly resistant to frosting in humid, low-temperature conditions, ensuring that cold air is evenly distributed and can be delivered over longer distances.
In practice, PC honeycomb cores are used as outlet flow equalization screens in display cabinets. They convert turbulent supply air into a uniform laminar flow, effectively preventing cold air from blowing directly onto food and causing localized overcooling, while also aggregating cold air that settles at the bottom to form a cold zone, thereby improving refrigeration performance.
Multi-Scenario Applications
Display Cabinets and Cold Curtain Systems
In supermarkets and convenience stores, the performance of refrigerated display cabinet air curtains directly affects food preservation and energy consumption. Conventional outlets tend to produce uneven airflow and localized frosting. PC honeycomb outlet screens create a uniform cold air curtain, effectively preventing cold air leakage and frosting. Combined with PC’s good light transmittance, they improve energy efficiency while maintaining cabinet aesthetics.
Wind Tunnels and Laboratory Equipment
In wind tunnel equipment and flow straightening applications, airflow uniformity and stability are critical for measurement accuracy. The lightweight nature of PC honeycomb core provides excellent straightening performance without the excessive weight of traditional metal straighteners.
Electronic Enclosures and Data Centers
In electronic equipment cooling, balancing ventilation with electromagnetic interference (EMI) shielding is a challenge. PC honeycomb core offers good air permeability and electrical insulation, effectively meeting the cooling needs of electronic devices. For applications requiring higher shielding standards, metal honeycomb cores (aluminum, copper, or stainless steel) can serve as waveguide ventilation panels, providing EMI shielding while maintaining airflow.
Why Choose PC Over Metal or Paper Honeycomb
In airflow management applications, each material has its advantages and disadvantages. Aluminum honeycomb offers excellent rigidity, but is heavy and costly. Paper honeycomb absorbs moisture, swells, and can collapse – making it unsuitable for humid environments. PC polycarbonate strikes the best engineering balance – it is lightweight for easy handling and shipping, impact-resistant and not prone to deformation, electrically insulating which is perfect for electronic equipment, and can be formulated with flame retardancy to meet HVAC safety requirements. PC also resists moisture and chemicals, and will not rust or corrode. Additionally, PC is 100% recyclable, non-toxic, and can be modified with UV stabilizers and flame retardants to meet increasingly stringent environmental regulations.
Product Specifications
| Parameter | Range |
|---|---|
| Cell size | 3.5mm / 6mm |
| Thickness | 5mm – 100mm (customizable) |
| Standard sheet size | 1220mm × 2440mm |
| Colors | Clear / Grey / Black |
| Operating temperature | -40°C to +120°C |
| Air transmittance | ≥97% |
| Density (6mm cell) | ≈70 kg/m³ |
Custom angles (15°/30°/45°/60°) and other special parameters are available upon request.
Conclusion
The PC honeycomb core solves common airflow management problems – turbulence, high resistance, and uneven temperature distribution – with a simple yet highly efficient structure. It is lightweight, durable, highly breathable, and customizable in cell size, thickness, and color to fit different applications. As ventilation and cooling become increasingly critical performance factors in modern equipment, the PC honeycomb core is helping more manufacturers make airflow “orderly.”
